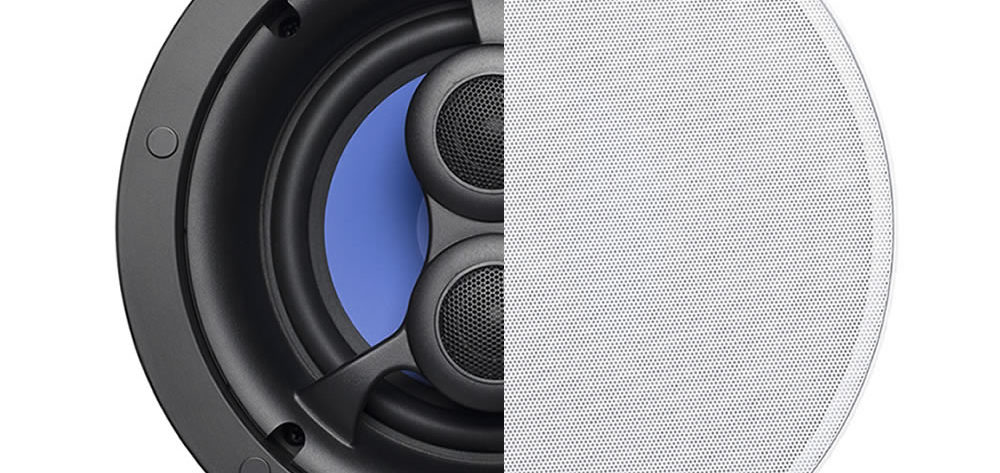

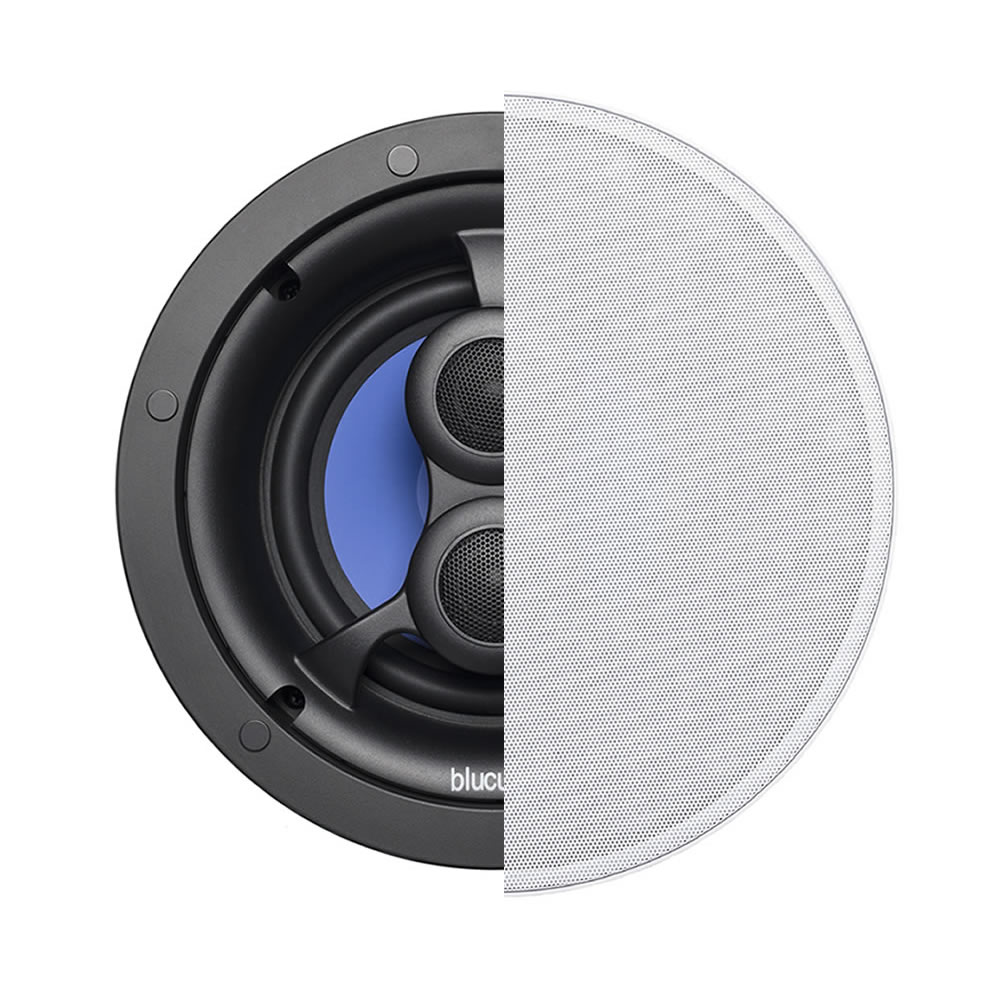

The BluCube BCP65-SS is the single stereo version of the mid-range BCP65 speakers. The twin voice coils and tweeters deliver a stereo signal out of a single unit enabling just one in-ceiling speaker to be used in a room. The BCP65-SS is ideal for use in smaller rooms such as bathrooms.
Adjustable Impedance
The 4ohm/8ohm switch located on the PCB provides the installer increased flexibility in matching power output and impedance levels to optimise the systems performance.
Stable Mountings

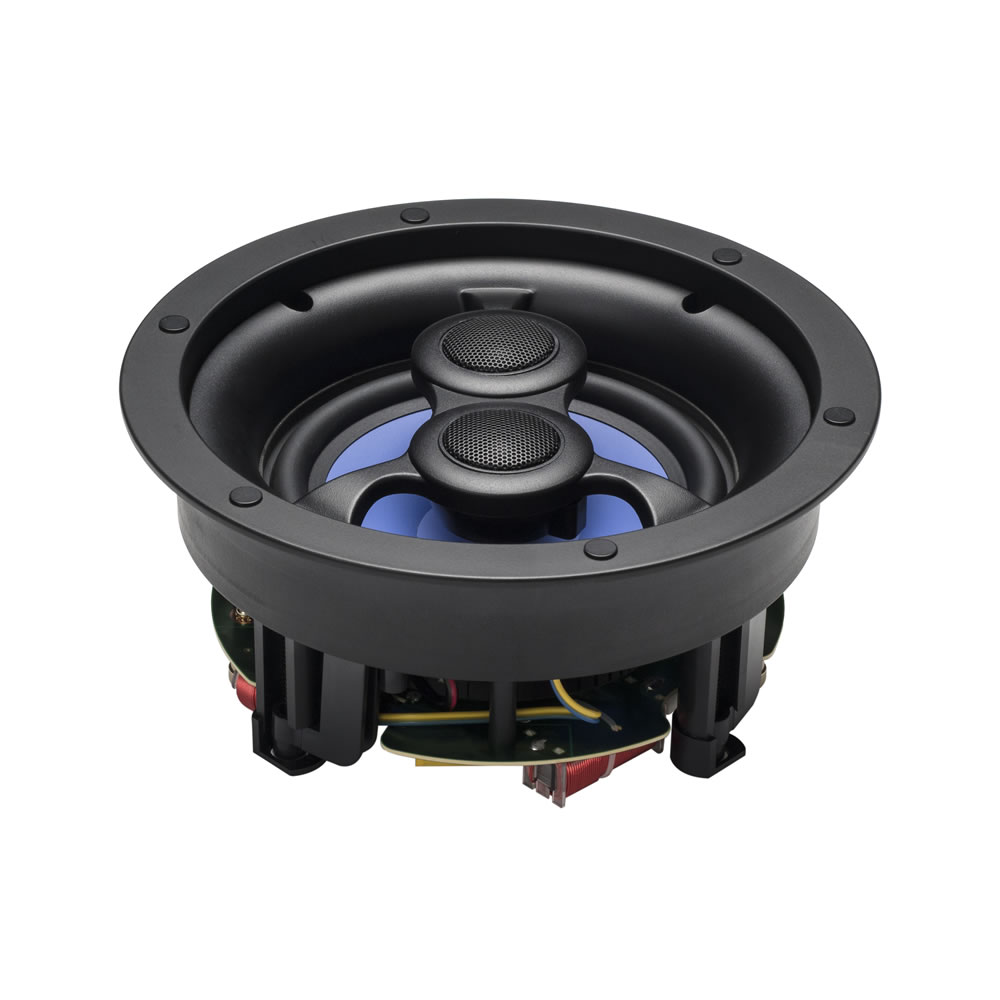

The two-piece baffle design in the Blucube custom install range allows the tweeter to be directly mounted on the bridge itself rather than the pole mounting found in most current designs. This allows the speaker to handle more power with increased cone stability resulting in reduced harmonic distortion.
Durable Construction
All speakers are designed to deliver excellent performance in a full range of indoor listening environments. Polypropylene plastics and large cable gauges, for better signal transfer, will ensure many years of listening enjoyment. Blucube speakers carry a 5 year warranty.

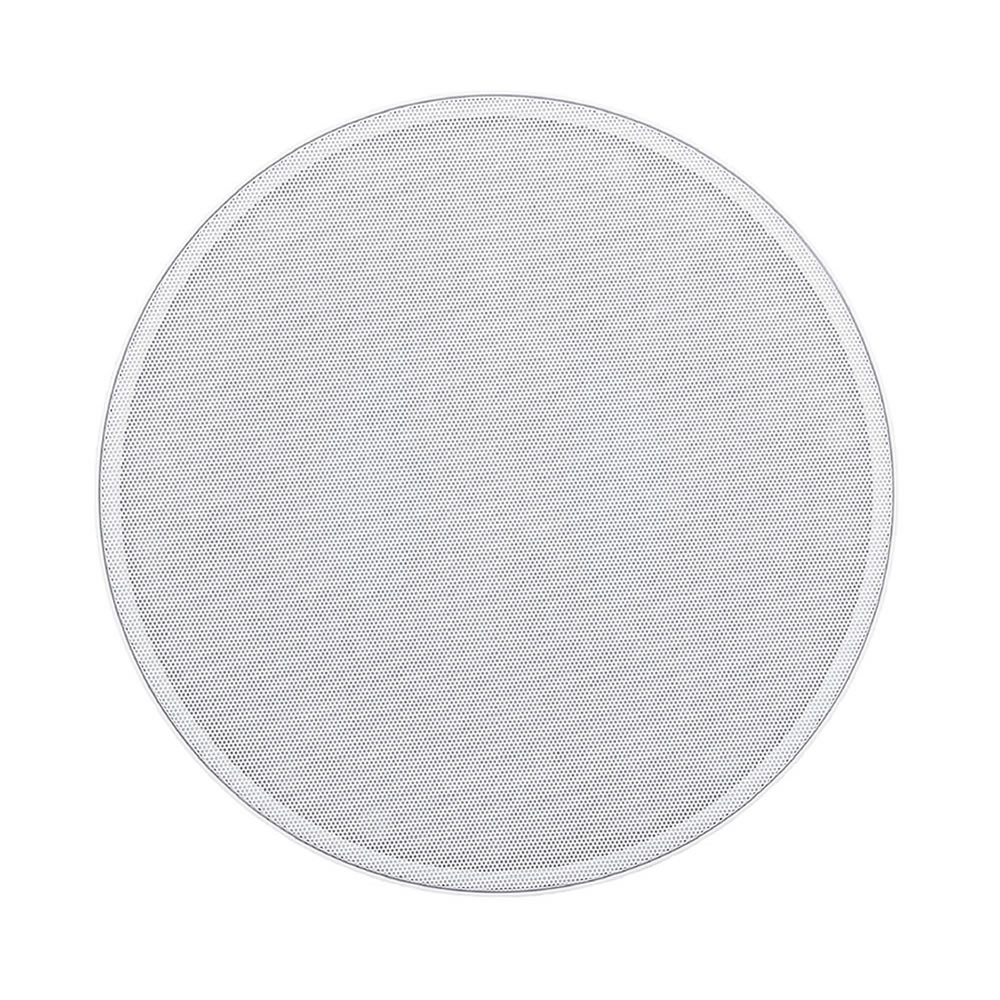

Paint mask, pre-mount bracket and cut out template included
| Woofer | 6.5″ blue polypropylene cone, 1″ voice coil, 22oz magnet, vented pole piece |
|---|---|
| Tweeter | Dual 19mm silk dome, ferro-fluid cooled, 30 degree swivel and pivot, neodymium magnet |

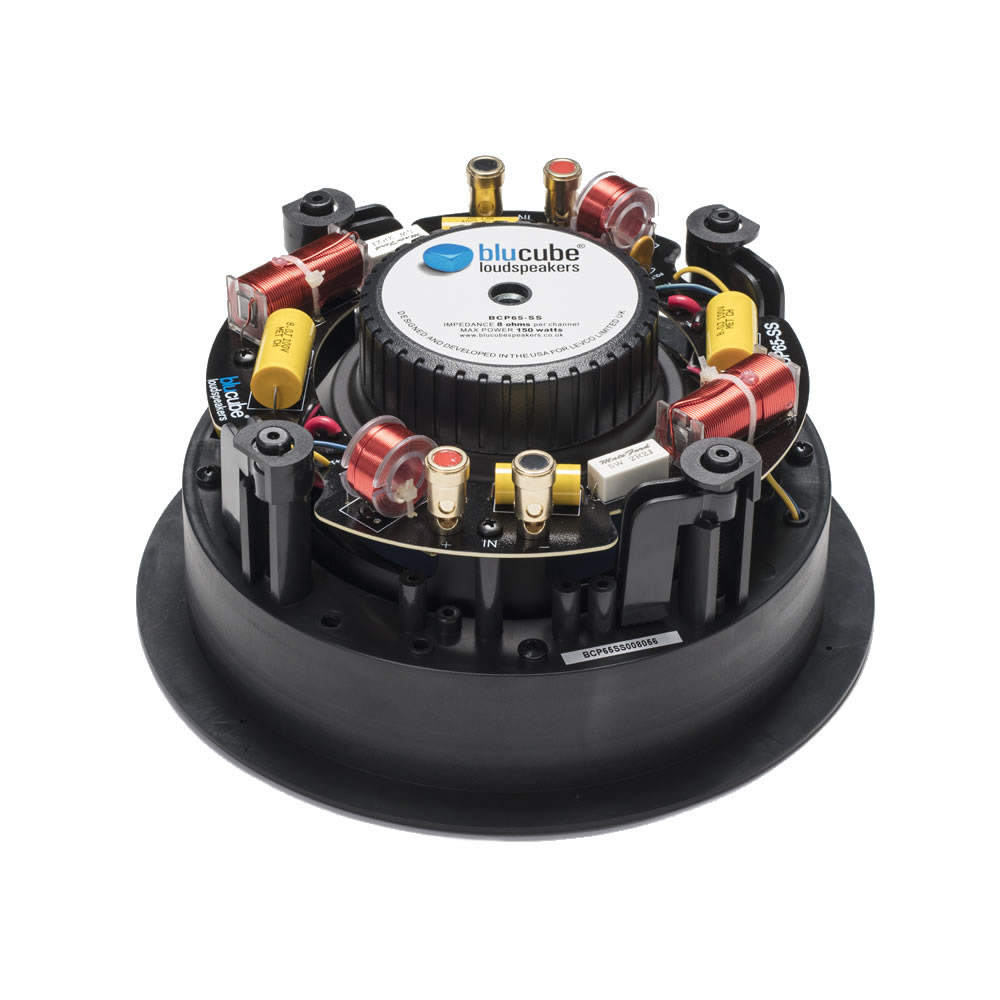

| Crossover | Half fibre PCB board with 12dB per octave crossover for tweeter and woofer, polyimide switch-auto protect reset switch, over power protection for tweeter, gold plated terminal posts will accept 14AWG wire |
| Frequency Response | 45Hz-22KHz |
| Sensitivity | 88dB at 1W/1M |
| Recommended Amplifier Power | 10-150 watts |
| Impedance | 8ohm per channel |
| Cut out size | 202mm (8″) |
| Depth | 112mm (4.43″) |
