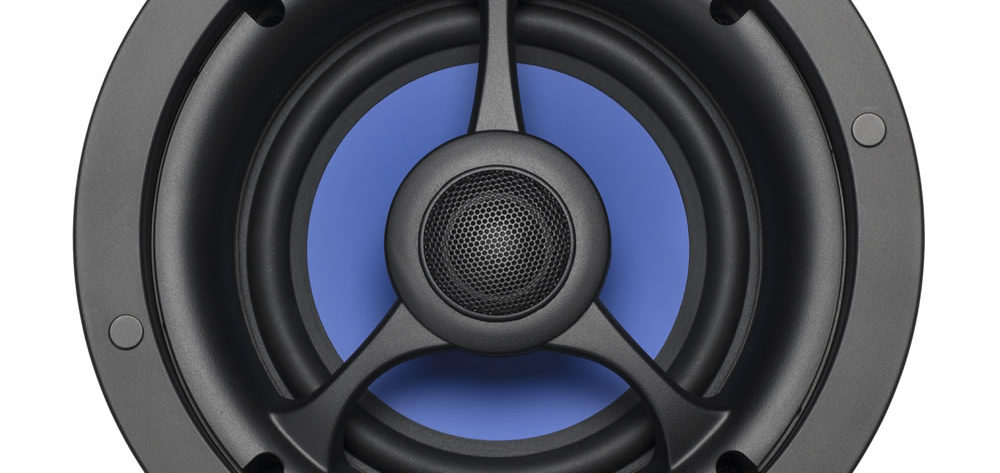

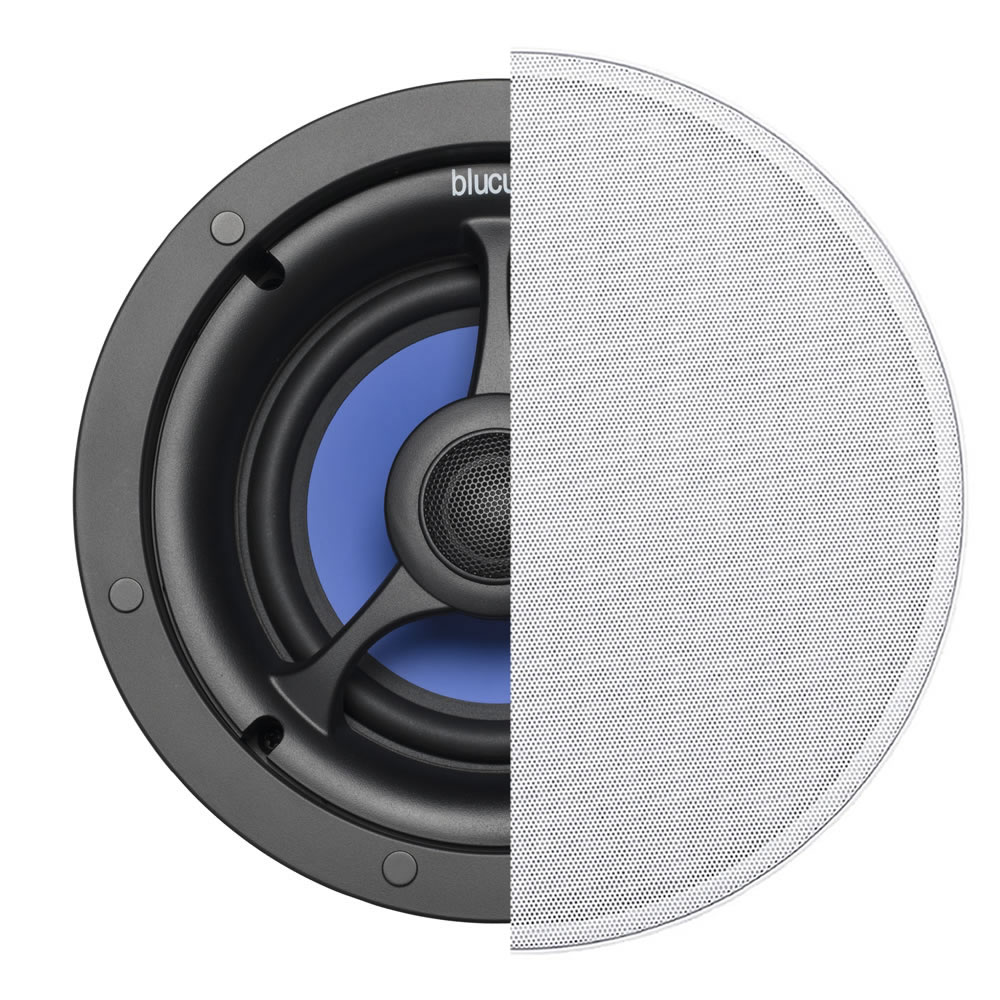

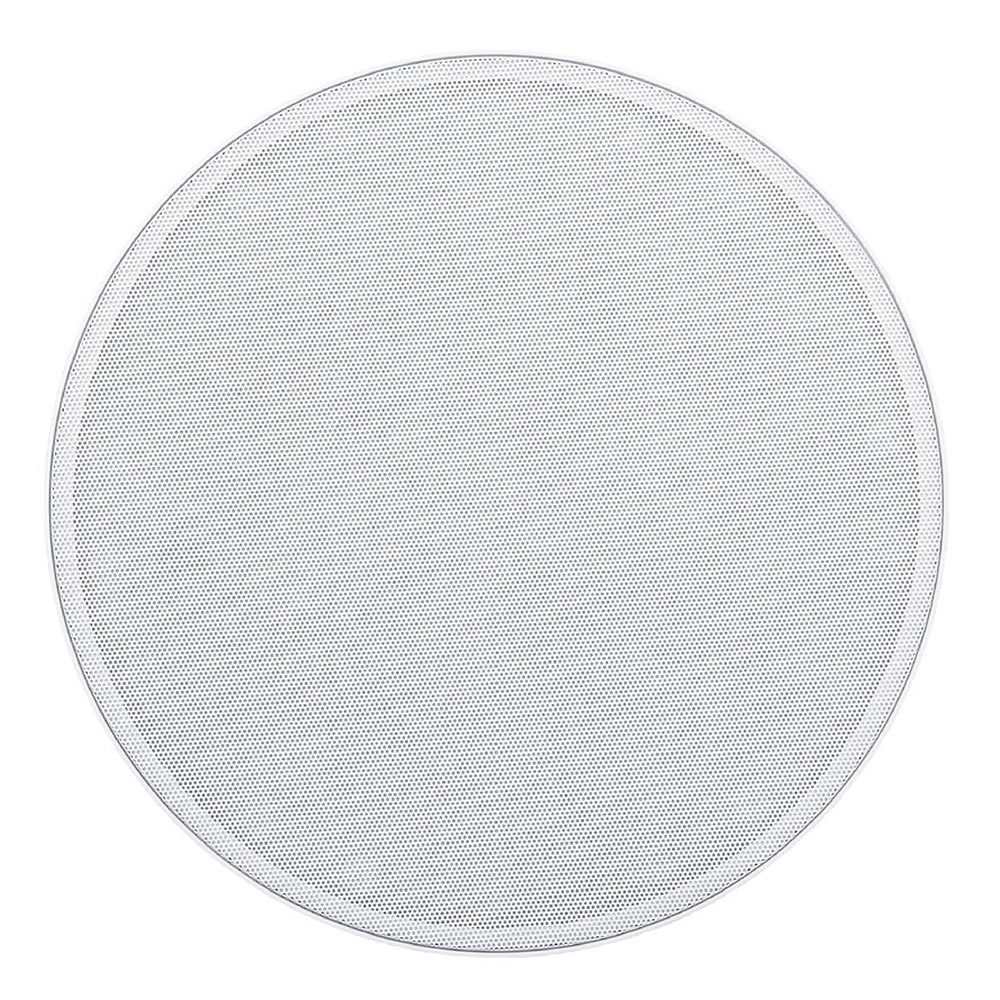

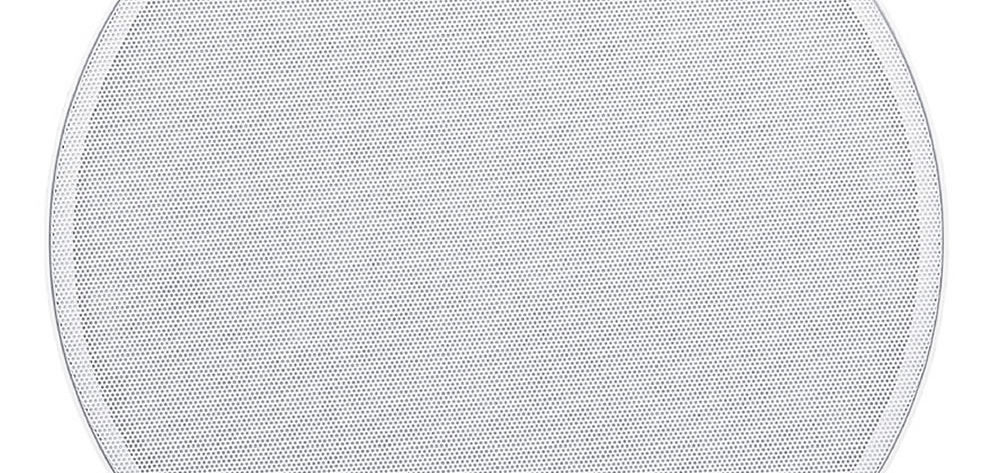

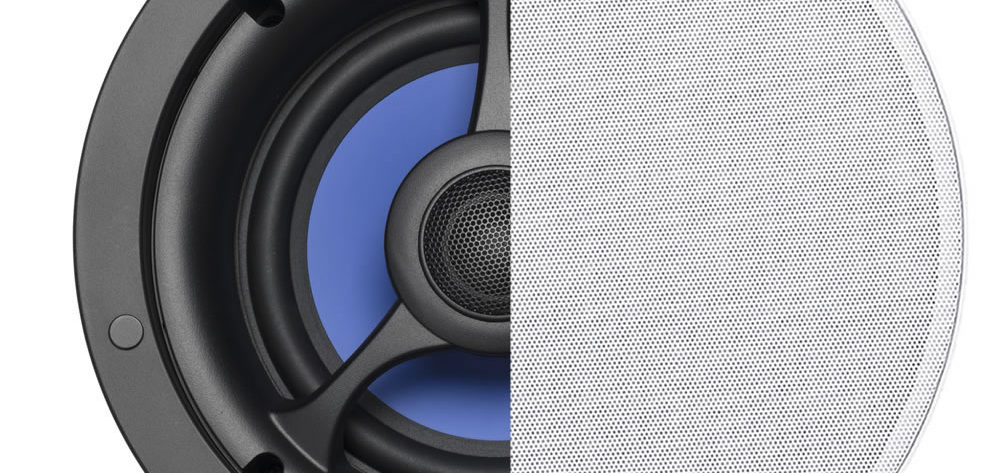

The BluCube BCP65 in-ceiling speakers provide performance beyond their price point. Identified by their crossover and adjustable tweeters, the BCP65 delivers high quality ceiling-mounted audio. Strong aesthetic appeal is delivered by using sleek, clean looking magnetically-fitted rimless flat grilles. These features are what defines the BluCube range of in-ceiling speakers.
Adjustable Impedance

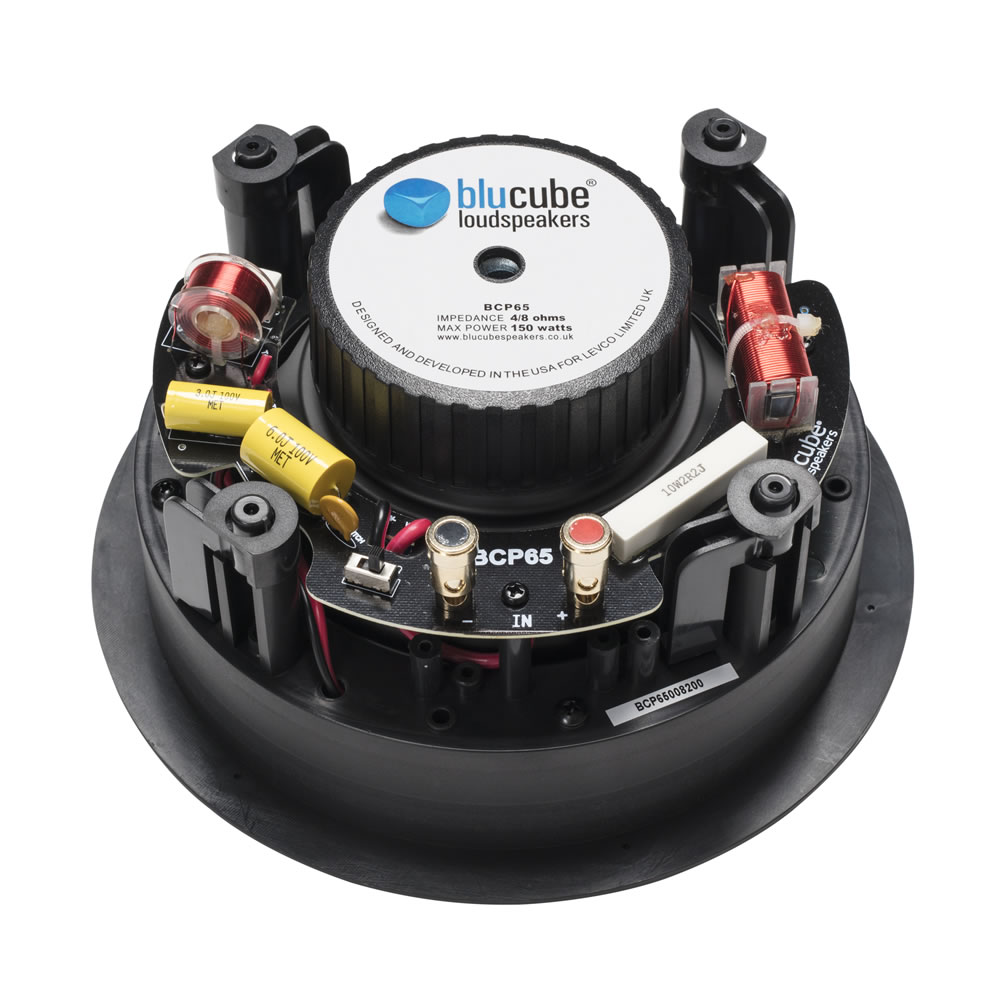

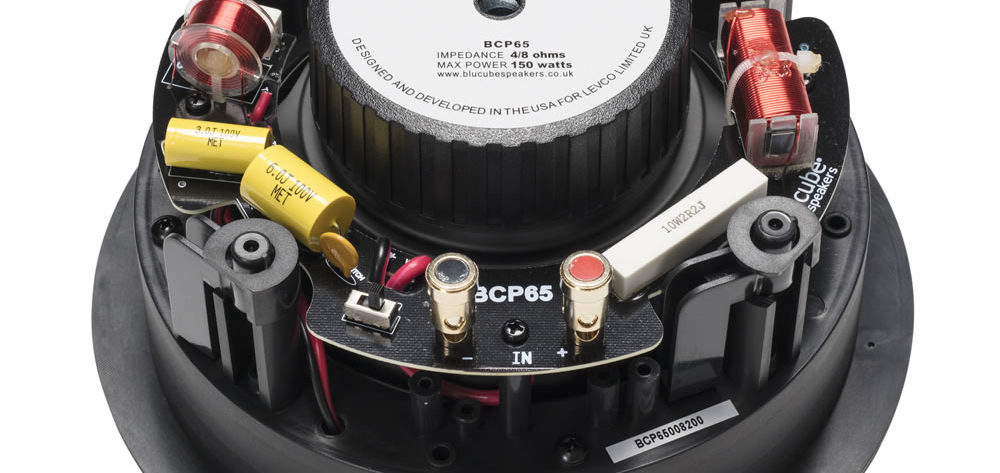

The 4ohm/8ohm switch located on the PCB provides the installer increased flexibility in matching power output and impedance levels to optimise the systems performance.
Stable Mountings

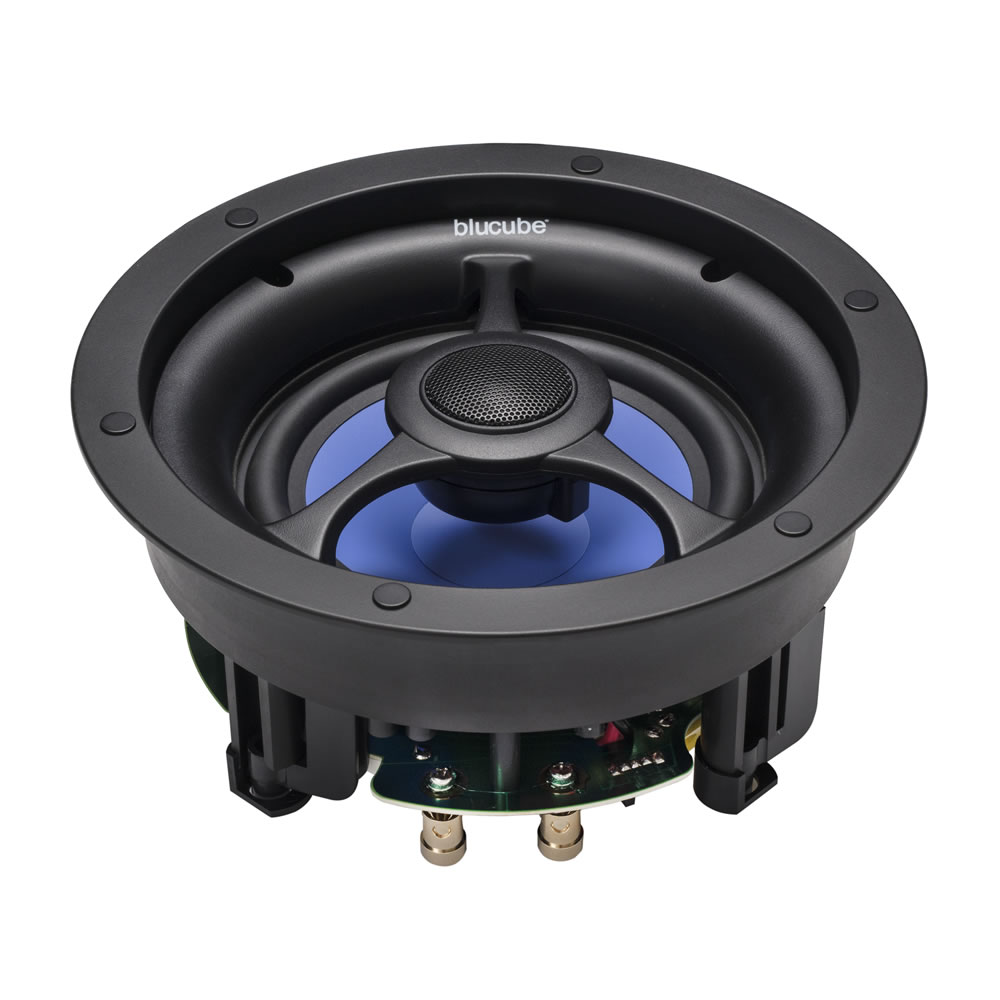

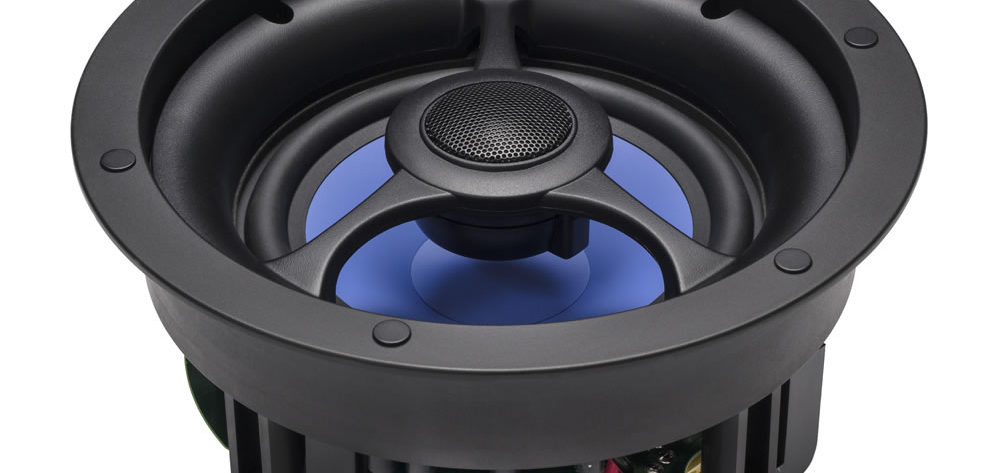

The two-piece baffle design in the Blucube custom install range allows the tweeter to be directly mounted on the bridge itself rather than the pole mounting found in most current designs. This allows the speaker to handle more power with increased cone stability resulting in reduced harmonic distortion.
Durable Construction
All speakers are designed to deliver excellent performance in a full range of indoor listening environments. Polypropylene plastics and large cable gauges, for better signal transfer, will ensure many years of listening enjoyment. Blucube speakers carry a 5 year warranty.
Paint mask, pre-mount bracket and cut out template included
| Woofer | 6.5″ blue polypropylene cone, 1″ voice coil, 22oz magnet, bumped back plate, vented pole piece |
|---|---|
| Tweeter | 1″ silk dome, ferro-fluid cooled, 30 degree swivel and pivot, neodymium magnet |
| Crossover | Half fibre PCB board with 12dB per octave crossover for tweeter and woofer, polyimide switch-auto protect reset switch, over power protection for tweeter, gold plated terminal posts will accept 14AWG wire |
| Frequency Response | 45Hz-22KHz |
| Sensitivity | 88dB at 1W/1M |
| Recommended Amplifier Power | 10-150 watts |
| Impedance | 4ohm/8ohm selectable |
| Cut out size | 202mm (8″) |
| Depth | 115mm (4.4″) |
