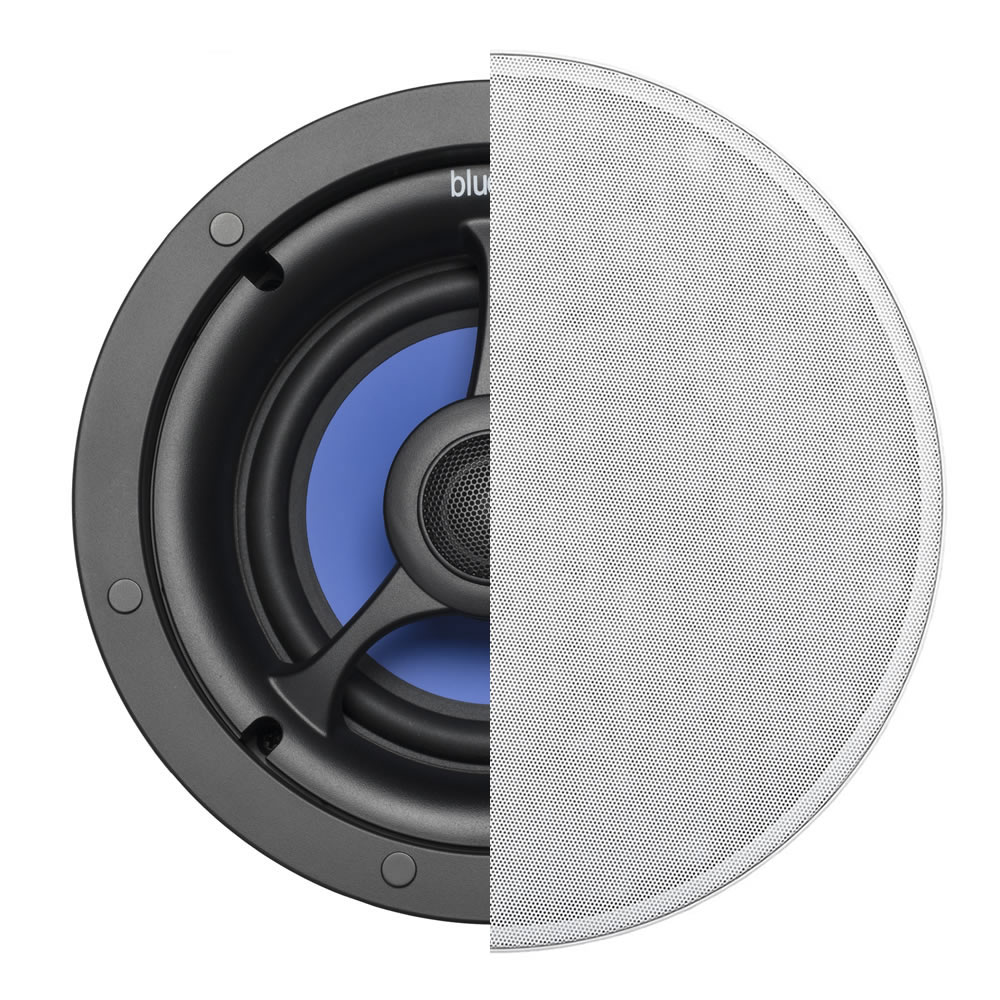

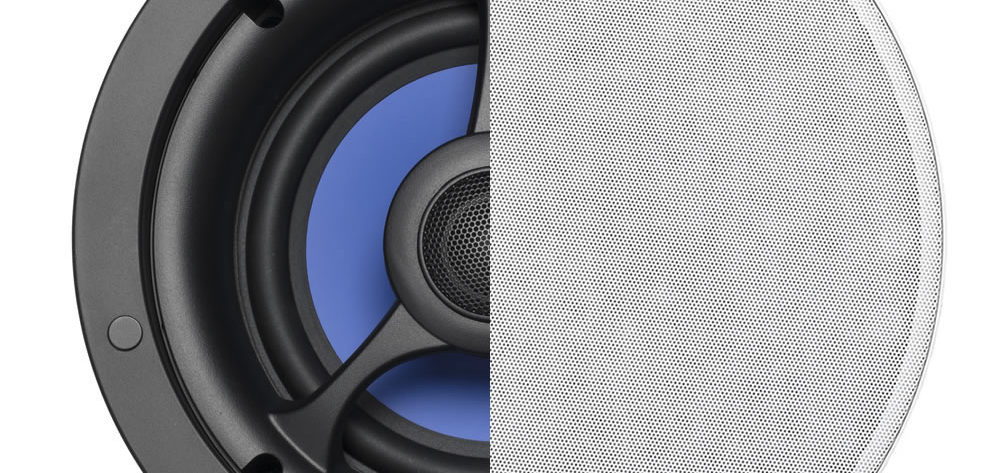

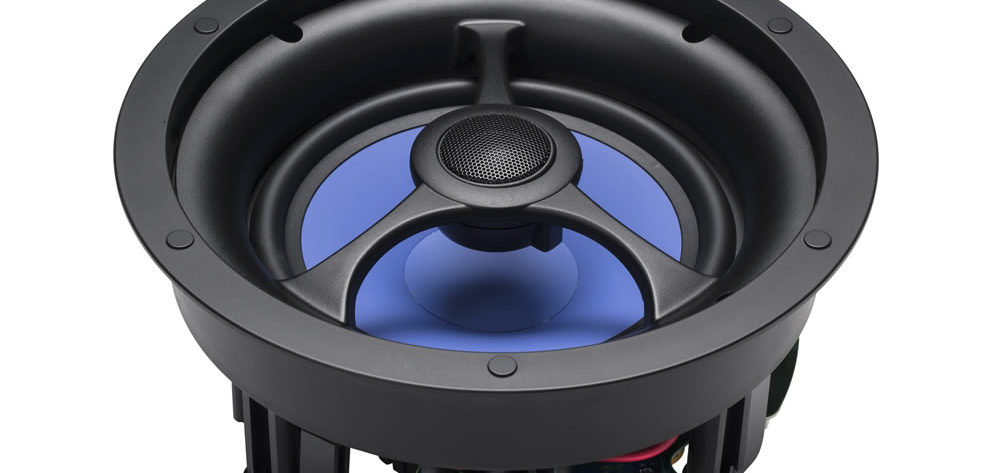

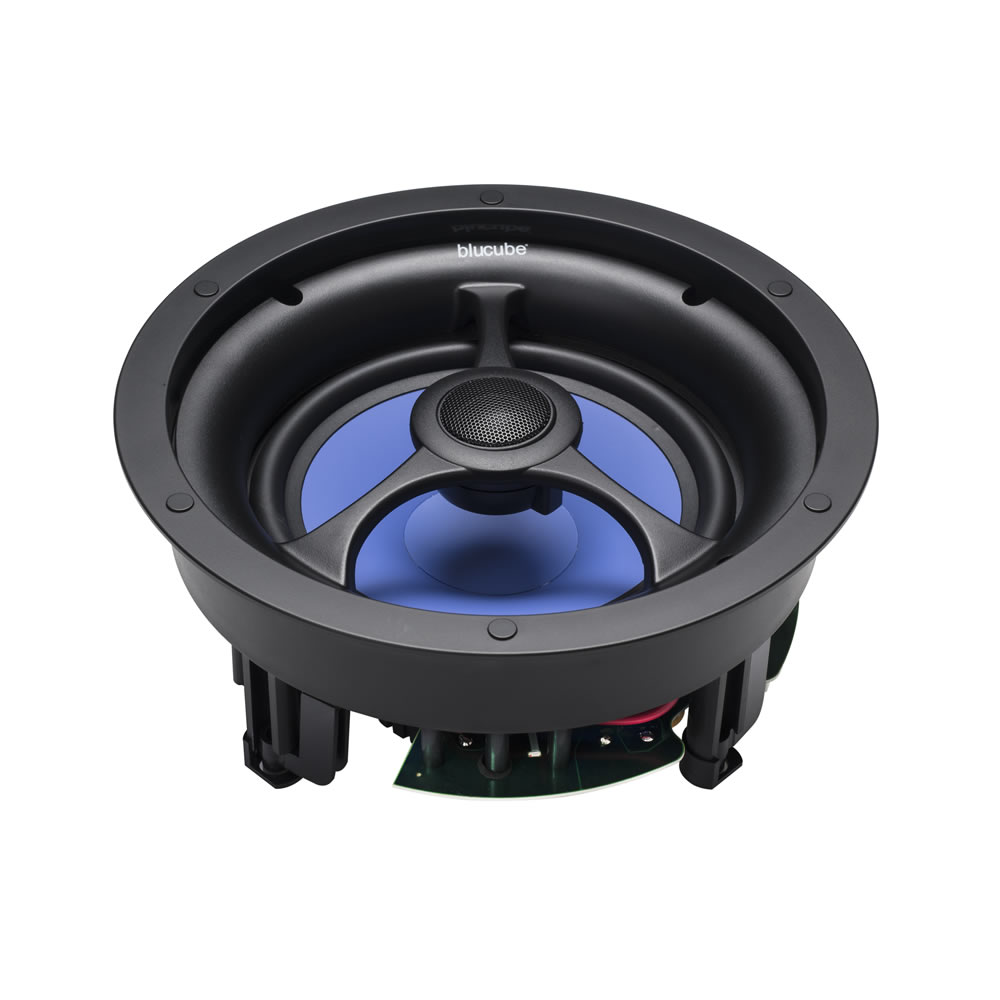

The BluCube BCP80 ceiling speakers are the highest-performing speakers in the BluCube BCP range. It features a 2-way design with a larger woofer (8in). The BCP80 speakers deliver more bass sound where greater audio depth is desired and are recommended for use in a larger rooms.
The 4ohm/8ohm switch located on the PCB provides the installer increased flexibility in matching power output and impedance levels to optimise the systems performance.
The two-piece baffle design in the Blucube custom install range allows the tweeter to be directly mounted on the bridge itself rather than the pole mounting found in most current designs. This allows the speaker to handle more power with increased cone stability resulting in reduced harmonic distortion.
All speakers are designed to deliver excellent performance in a full range of indoor listening environments. Polypropylene plastics and large cable gauges, for better signal transfer, will ensure many years of listening enjoyment. Blucube speakers carry a 5 year warranty.
Paint mask, pre-mount bracket and cut out template included

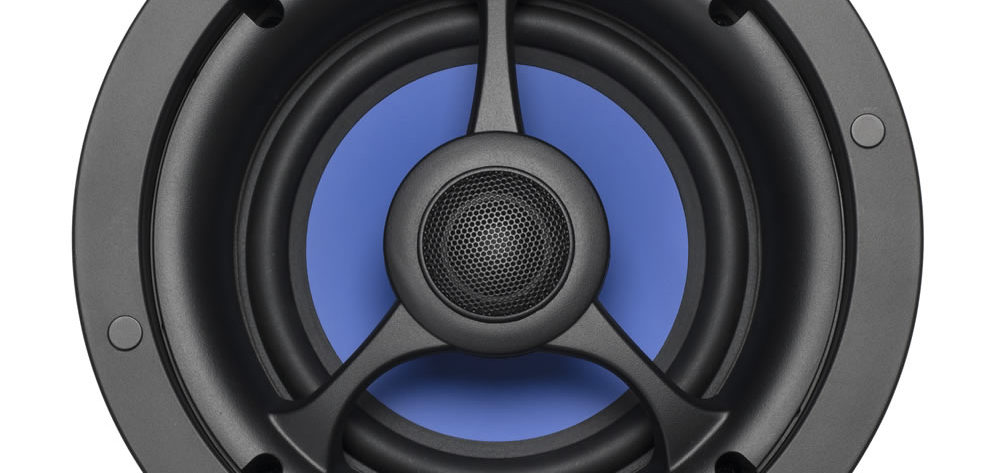

|Woofer||8″ blue polypropylene cone, 1.25″ voice coil, 25oz magnet, bumped back plate, vented pole piece|
|Tweeter||1″ silk dome, ferro-fluid cooled, 30 degree swivel and pivot, neodymium magnet|

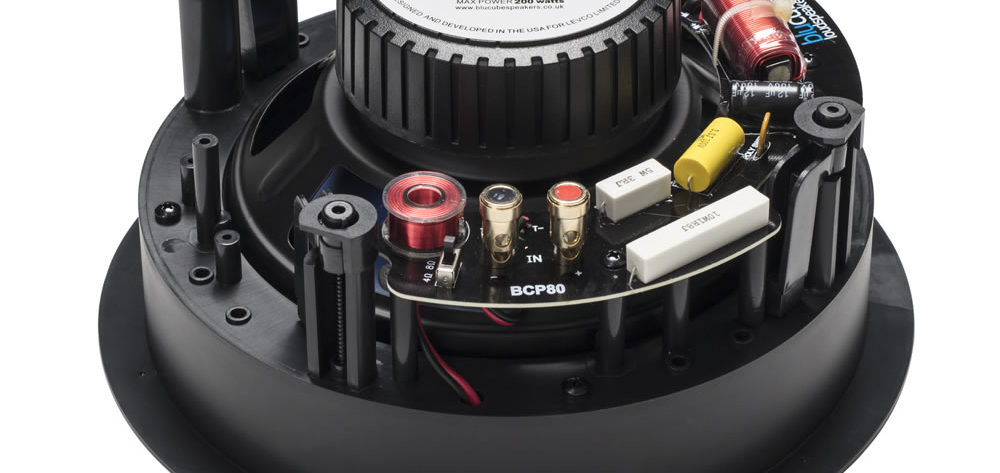

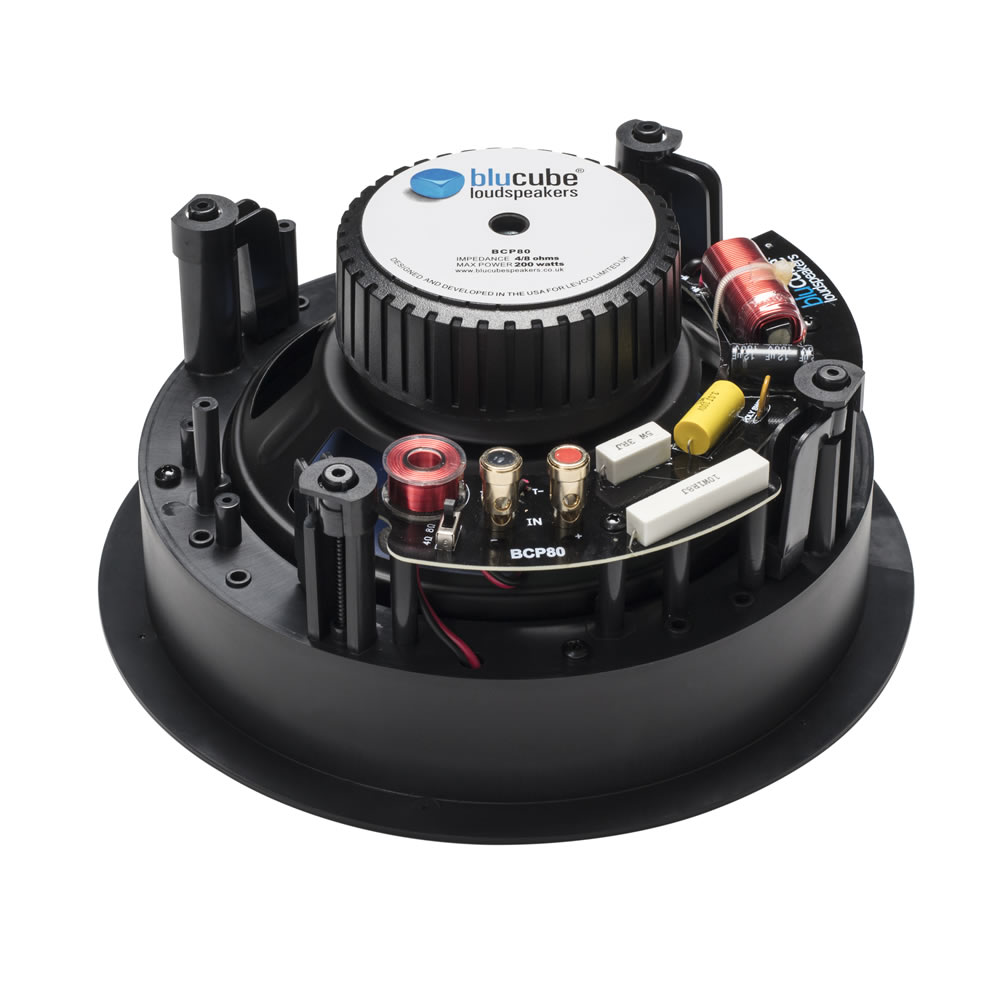

|Crossover||Half fibre PCB board with 12dB per octave crossover for tweeter and woofer, polyimide switch-auto protect reset switch, over power protection for tweeter, gold plated terminal posts will accept 14AWG wire|
|Sensitivity||89dB at 1W/1M|
|Recommended Amplifier Power||10-200 watts|
|Cut out size||244mm (9.6″)|
