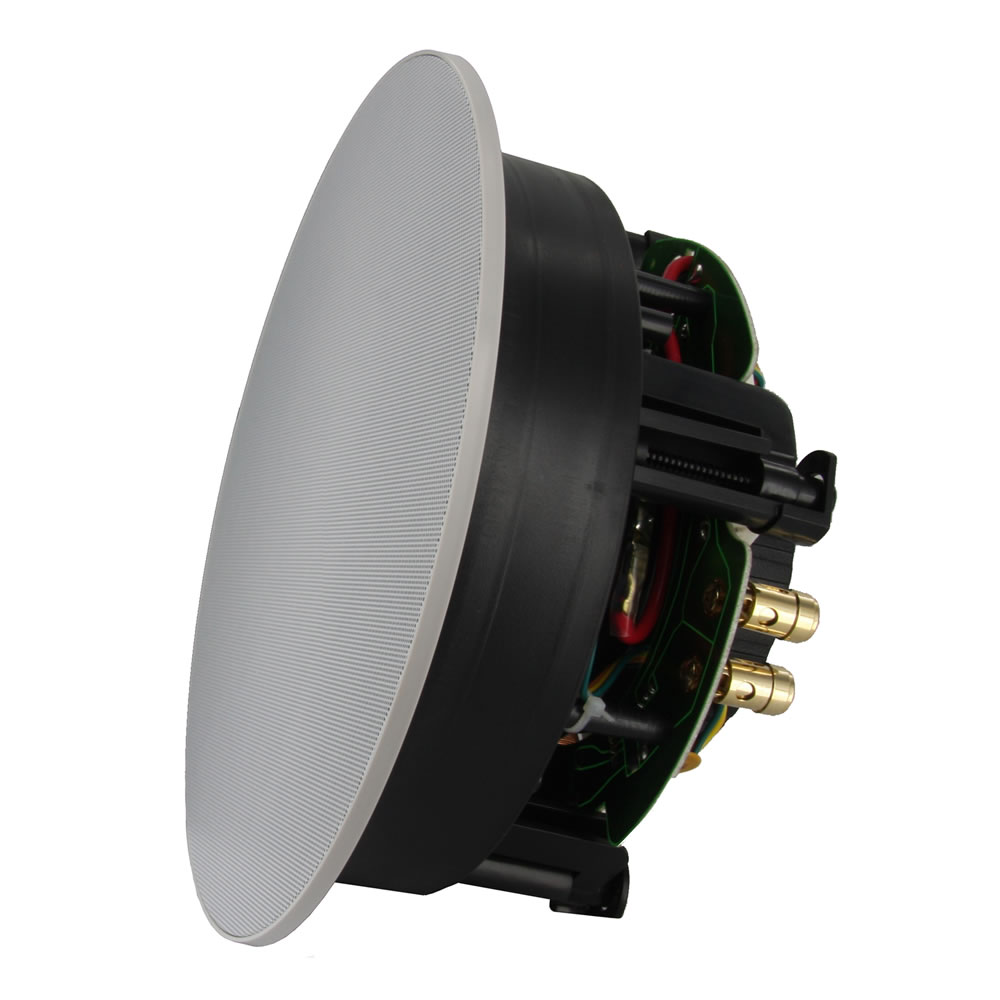

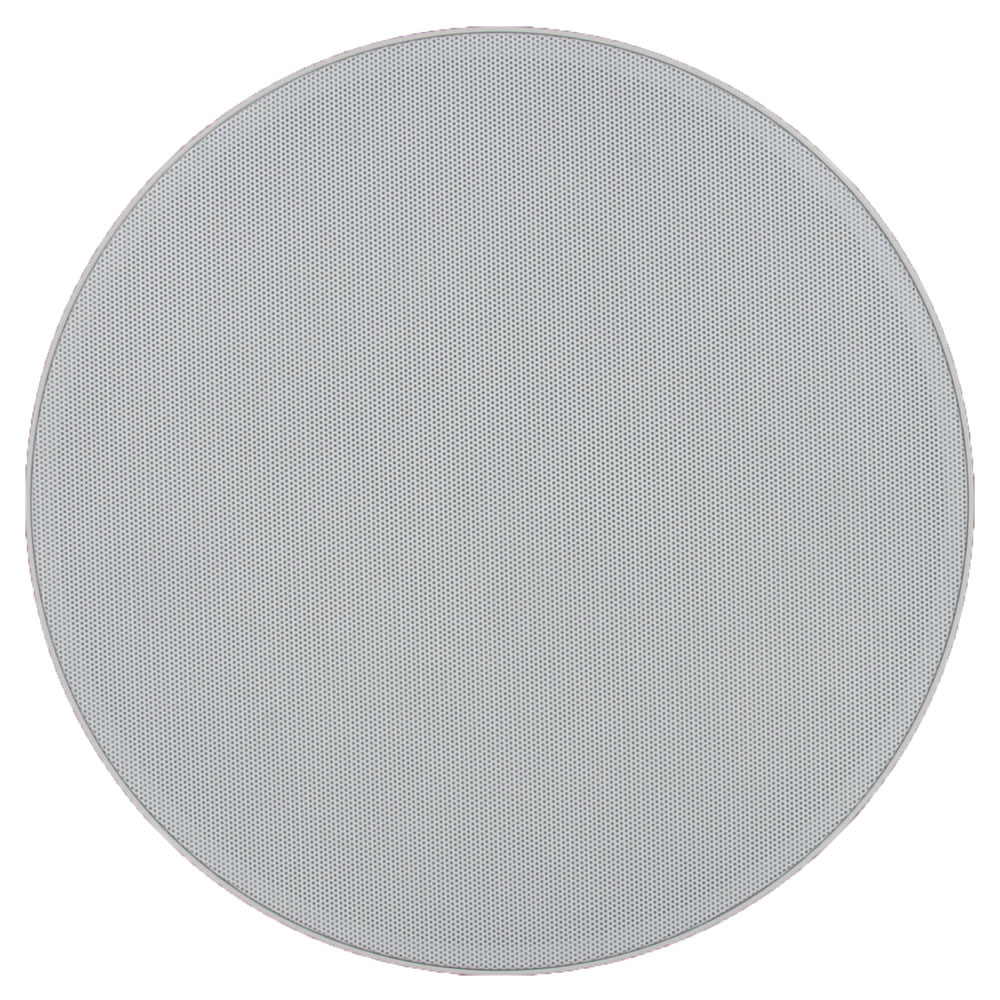

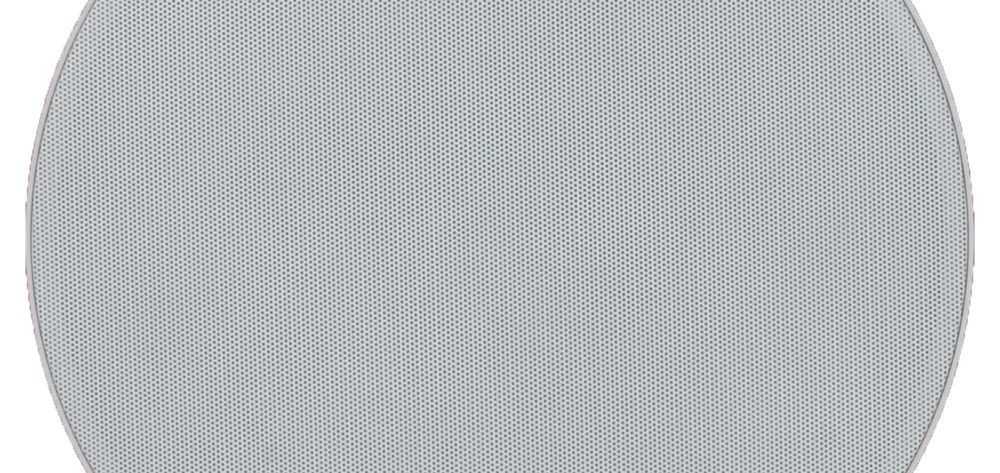

The CXCL-650 is a high performance easy to install in-ceiling speaker. The two way driver design, featuring a Kevlar bass/midrange driver cone coupled with a titanium tweeter and high quality cross-over create a crisp and controlled sound. This, along with the sleek, clean looking magnetically fitted rimless flat grille is what defines the BluCube range of in-ceiling speakers.
Each Blucube custom install speaker pair, from the CXL range, features 6db attenuation switches for both woofers and tweeters. These allow the installer to fine tune the speakers output levels to match room designs, specific applications, or individual listening preferences.

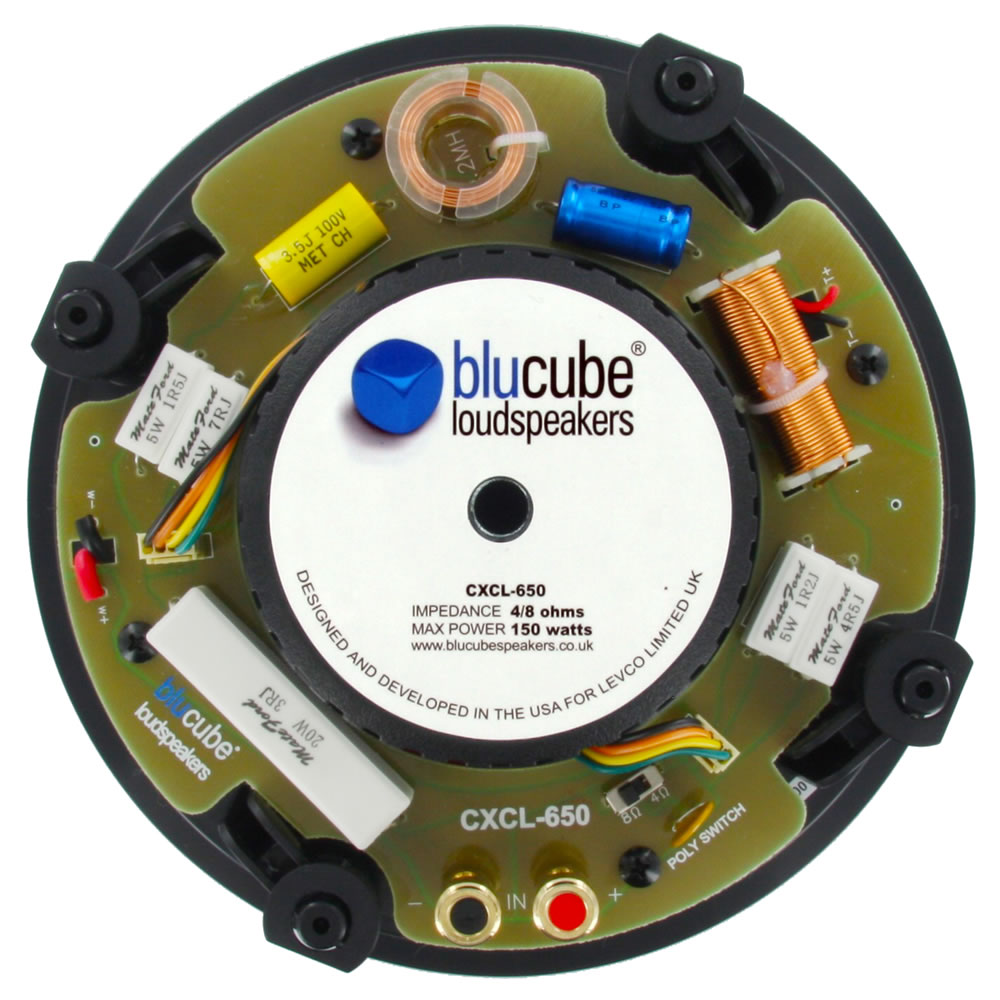

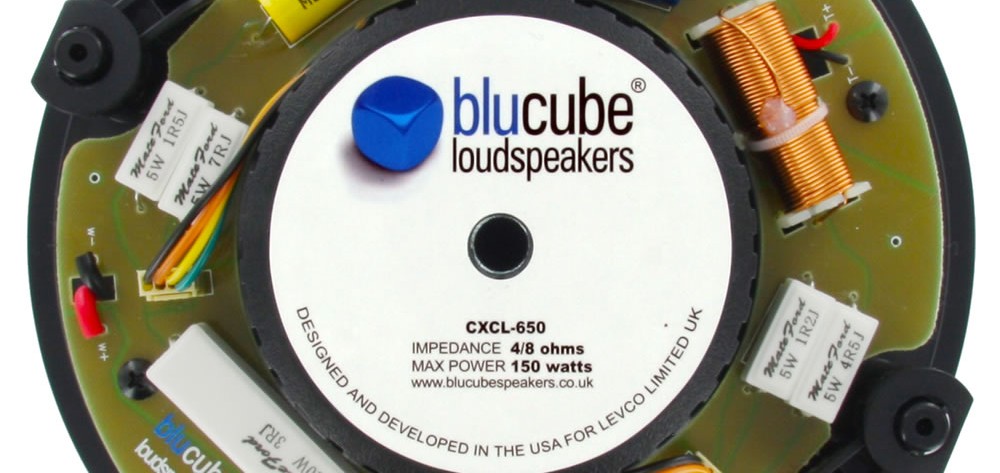

The 4ohm/8ohm switch located on the PCB provides the installer increased flexibility in matching power output and impedance levels to optimise the systems performance.
Woven Kevlar Cones
The CXL series of custom install speakers use DuPont Kevlar fibres. The woven Kevlar fibres used in the cone allows the woofer section to deliver better defined bass and at the same time producing a refined midrange bringing a cleaner, clearer listening experience.

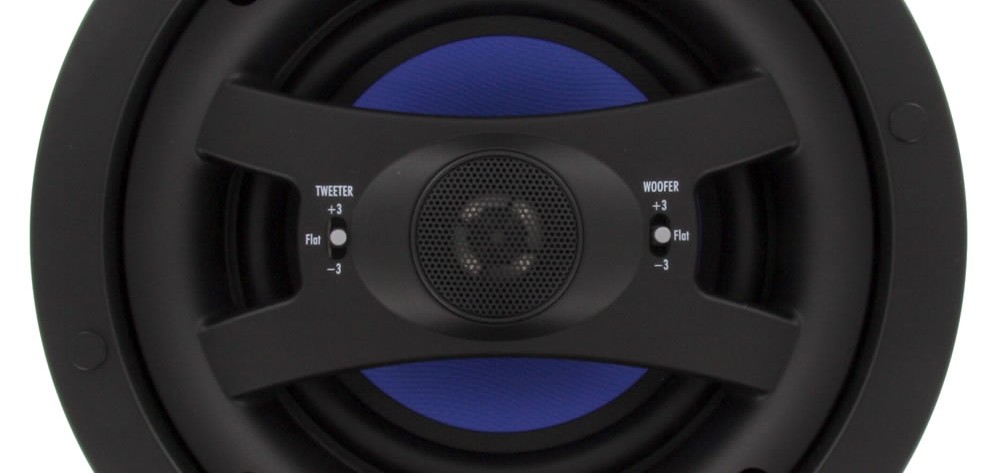

The titanium dome tweeters in the Blucube CXL range deliver a smooth, crisp, controlled frequency response with detailed sound. They are able to handle more power and definition more consistently than soft dome tweeters and are protected by a polymide auto-reset switch in the event of overload. With a 30-degree tilt and full rotation swivel capability, the tweeter design allows for a tailored and optimised performance to match room design, or layout.
The two-piece baffle design in the Blucube custom install range allows the tweeter to be directly mounted on the bridge itself rather than the pole mounting found in most current designs. This allows the speaker to handle more power with increased cone stability resulting in reduced harmonic distortion.
All speakers are designed to deliver excellent performance in a full range of indoor listening environments. Polypropylene plastics and large cable gauges, for better signal transfer, will ensure many years of listening enjoyment. Blucube speakers carry a 5 year warranty.
Paint mask, pre-mount bracket and cut out template included
Woofer 6.5″ woven Kevlar, 1″ voice coil, 22 oz magnet bumped back plate, vented pole piece
Tweeter Dual 19mm titanium dome, ferrofluid cooled, 30° swivel and pivot neodymium magnet
Crossover FR4 board with 18dB per octave network, +/- 3dB attenuation switches on woofer & tweeter
4ohm/8ohm switchable on PCB, Polyimide switch-auto protect reset switch, 14AWG connection
to woofer section. Gold Plated terminals will accept 14AWG wire
Frequency Response 45Hz-22KHz
Sensitivity 88dB at 1W/1M
Recommended Amplifier Power 10-125 watts
Impedance 4ohm/8ohm selectable on PCB
Cut out size 202mm (7.95″)
Depth 97mm (3.82″)
